Infrared Heat Lamp for Printing Equipment

  • 415V 1900W Twin Tube Quartz IR Emitter for Speedmaster 83.170.1411

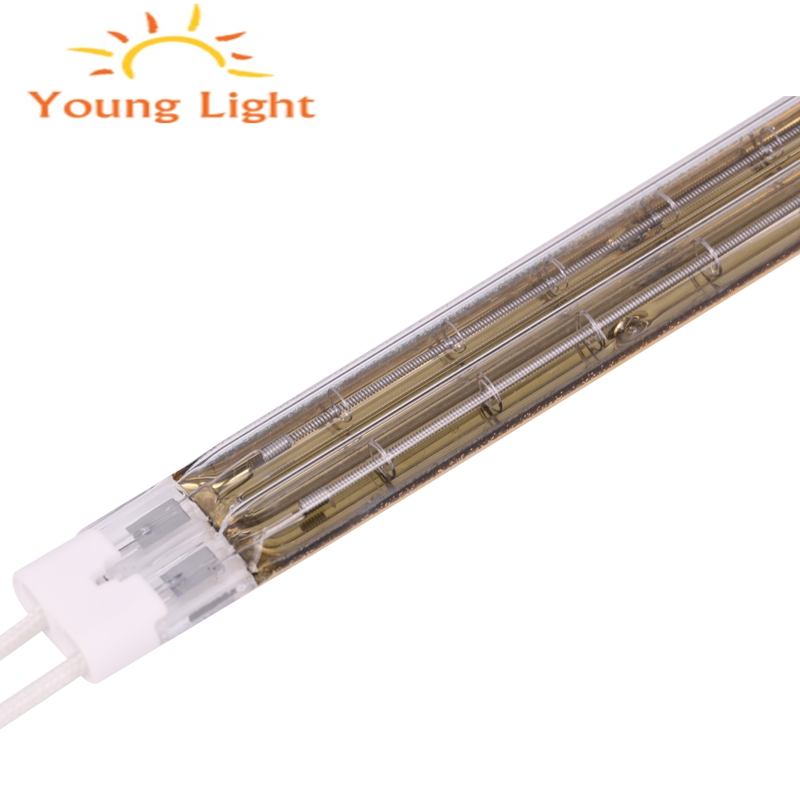

415V 1900W Twin Tube Quartz IR Emitter for Speedmaster 83.170.1411

  • 415V 1900W Twin Tube Quartz IR Emitter for Speedmaster 83.170.1411
  • INQUIRY

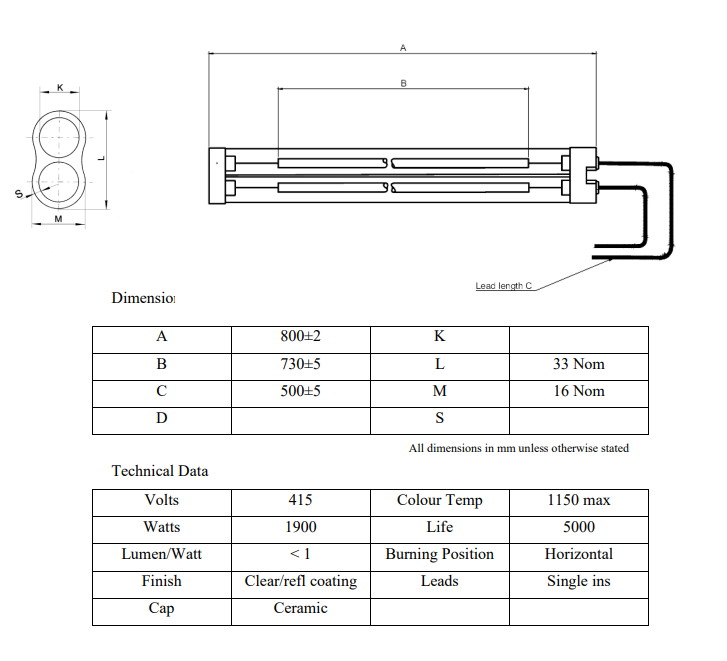

415V 1900W Medium Wave Quartz Infrared Lamps For Speedmaster 83.170.1411

Voltage

Wattage

Total length

Heated length

Cross section

Reflector

Type

Burning position

415V

1900W

800mm

720mm

33*15mm

Gold

B

Horizontal



1. Infrared Heat Lamp Advantages:
Quick heating: 1~2 seconds fast response time.

Special reflectors: Gold reflector (90% reflective rate), White ceramic reflector (70% reflective rate).

Matched IR radiation wavelength: Short wave (1.0~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).

Higher density power output: The highest surface power output of short wave lamp is 200KW/M2, Fast response medium wave lamp is 130KW/M2, Medium wave lamp is 60KW/M2.

Long working life: We can promise the working life of short wave and fast response medium wave lamp 5000hrs and medium wave lamp 8000hrs.



2. TwinTube Infrared Heat Lamp Specification:

Twin Tube Infrared Heat Lamp
Total Length(mm)Heated Length(mm)Voltage(V)Wattage(W)Cross Section(mm)ReflectorConnection SideBurning PositionTYPE
12560115/23060023X11GOLDVERTICALONE-SIDEB
14580115/23060023X11GOLDVERTICALONE-SIDEB
14580115/230100023X11GOLDVERTICALONE-SIDEB
200130230120023X11WHITEHORIZONTALONE-SIDEB
250180240100023X11GOLDHORIZONTALONE-SIDEB
350270240150033X15GOLDHORIZONTALONE-SIDEB
400320230200023X11GOLDHORIZONTALTWO-SIDEC
450380400220023X11NOVERTICALTWO-SIDEC
480410230200033X15GOLDHORIZONTALONE-SIDEB
500420400300023X11WHITEHORIZONTALTWO-SIDEC
600535230300023X11GOLDHORIZONTALONE-SIDEB
630560380360023X11GOLDHORIZONTALTWO-SIDEC
660580400440023X11NOHORIZONTALONE-SIDEB
700630220300023X11GOLDHORIZONTALTWO-SIDEC
735630400460033X15GOLDVERTICALTWO-SIDEC
800700230400023X11GOLDHORIZONTALTWO-SIDEC
900800400695023X11GOLDHORIZONTALTWO-SIDEL
11001000400350023X11GOLDHORIZONTALONE-SIDEA
11251020400600023X11GOLDHORIZONTALONE-SIDEB
11601080400620033X15GOLDHORIZONTALONE-SIDEB
12001100240540023X11GOLDHORIZONTALONE-SIDEG
12501150400350023X11GOLDHORIZONTALTWO-SIDED
14501350400800023X11GOLDHORIZONTALTWO-SIDEC
17001600480900023X11GOLDHORIZONTALTWO-SIDEC
220021004801280033X15WHITEHORIZONTALTWO-SIDEC
310030004801300033X15GOLDHORIZONTALTWO-SIDEC


Alternative Models

HERAEUS
Part no. Volts Watts OAL Type
0975172040030001100A
09751713115600145B
097517512301500300B
097517412301200405B
097517404003000600B
097513404003000600B
097517612303000650C
097517652304200850C
0975176040060001150C
0975173140070001450C
0975178040060001450D
0975178340050001850D
09752439230500400B
097551672301000900B
097550542302000900B
0975525523025001100B
0975318723032501420B
0975458523037501600B
0975486340041001800B
0975478340045001920B
0975608340057502400B
0975387423062502600B
0975392340025001300C
0975291240040001700B
0975461940050002120B
0975387440062502600B
0975147340048001150B
0975147140040001150B
0975147440095002250C
0975147240048002715A
0975147540096002750C


Heidelberg

Machine

Alt part no.

Voltage

Wattage

TOL

Type

Speedmaster 74

M6.170.0301/01

400

6950

900

L

Speedmaster 74

SM74-FMW-B

480

4200

900

B

Speedmaster 52

G4.170.0101

415

3300

740

B

M Offset/ MO

53.170.1311

415

3300

740

B

Speedmaster 102

91.170.1311

415

3500

1100

A

Speedmaster 102

C7.170.0301/01

400

5400

1200

H

Speedmaster 102

91.170.1411

415

2500

1100

B

Speedmaster 102

SM102-FMW-B

480

6000

1125

B

Speedmaster 102

F7.170.0771

400

6200

1160

G

Speedmaster 72

83.170.1311

415

3500

800

B

Speedmaster 72

83.170.1411

415

1900

800

B

XL105

F7.170.0771.01

400

6200

1160

G

We also have the ability to design and produce other kinds of infrared heating lamps according to your requests.

3. Infrared lamps for Industrial Applications

1.Infrared Heat Lamp For Heating



Especially use for patio, canopy, terrace, restaurant , bar, cafe, garden, outdoor sport, stadiums, churches, workshop, factories, home, farm,greenhouse.

2. Infrared Heating Lamp For PET bottle blowing equipment


Reflector lamps focus infrared heat forward in the direction where it is required, reducing the loss of heat to the rear and improving efficiency. A reflective coating is applied to the surface of the lamp, usually covering 180° of the quartz tube. Infrared heat is emitted forward through the quartz tube, or is reflected off the back of the tube to then pass outfrom the front. Infrared heat lamps, with a reflector coating or clear heat lamp be used in various machines.

*Short wave clear infrared heat lamp
*Short wave white infrared heat lamp
*Short wave gold infrared heat lamp

3. Infrared Heating Lamp for Printing equipment


4. Infrared Heating Lamp for Paint Drying



*Short wave white heat lamp
*Short wave gold heat lamp
*Short-medium wave ruby heat lamp
*Short-medium wave ruby jacketed heat lamp


5. Infrared Heating Lamp for Drying Systems


6. Infrared Heating Lamp for Industrial Processing


4. FAQ

1.Are you factory or trading company?
We are professional factory of infrared heating lamps and quartz glass products since 1997. We have more than 80 experienced workers.

2.Can I have samples? Is it free?
Yes, we are happy to offer samples for you to check and test the quality. Samples are free if with stocks; you just need to bear the shipping cost. For samples without stocks, we will charge for the samples accordingly.

4.How long can I get the quotation? And samples?
Usually prices will be quoted within 24 hours after your enquiry. As for samples, it will take about 5-7 days. If it's special customized heating lamp, the time needed for samples could be longer.

5.What is your term of delivery?
We accept FOB, CIF, EXW etc. Please choose the one which is the most convenient and cost effective for you.

6.What about the lead time for mass production?
It depends on the order quantity and the season you place the order. The lead time is generally about 10 to 15 days.

7.Do you offer guarantee for the products?
 Yes, it must be. We guarantee 2 years for heaters and 5000-8000 hours for heating lamps. If it's customized heating lamp or heating unit, we will confirm with you the guarantee period in formal quotation together with data sheet.



Our Infrared heater lamps meet the standards of CE & ROHS, we have strict quality control to make sure each IR lamp is perfect!

Donghai Young Light Optical Technology Co., Ltd is a professional manufacturer specialized in producing infrared heating lamps over 15 years. All of our infrared heating lamps can meet the testing standard of CE, RoHS. Custom made is available in our factory, same specification as HERAEUS, DR. FISCHER, GE, PHILIPS etc.

We also provide OEM/ODM service of different designs IR heating lamps, and ensure the good quality with on time delivery.  Our heating lamps are exported to more than 50 countries include Germany, UK, USA, Mexico, Brazil, Egypt, Turkey, South Korea and other Asian countries.  We manufacture singe tube IR heating lamps and twin tube IR heating lamps and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation.

If you want to order or have any questions, please provide the following technical parameters or tell us your heating requests, we will reply you within 24 hours.

Total length LT=?
Heated length LH=?
Voltage=?
Wattage=?
Cross section= 23×11mm or 33×15mm
Reflector= Gold or White ceramic
Burning position= Horizontal or Vertical
Lamp type or original photo
