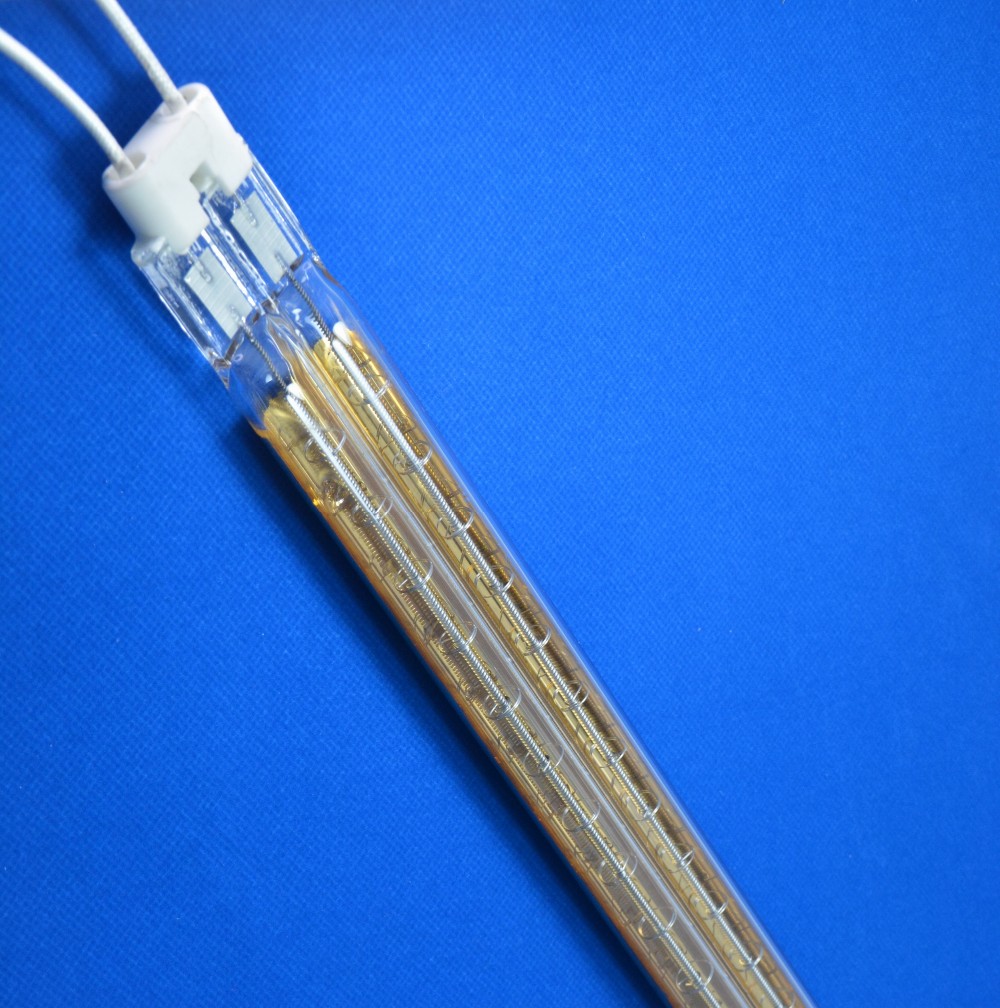

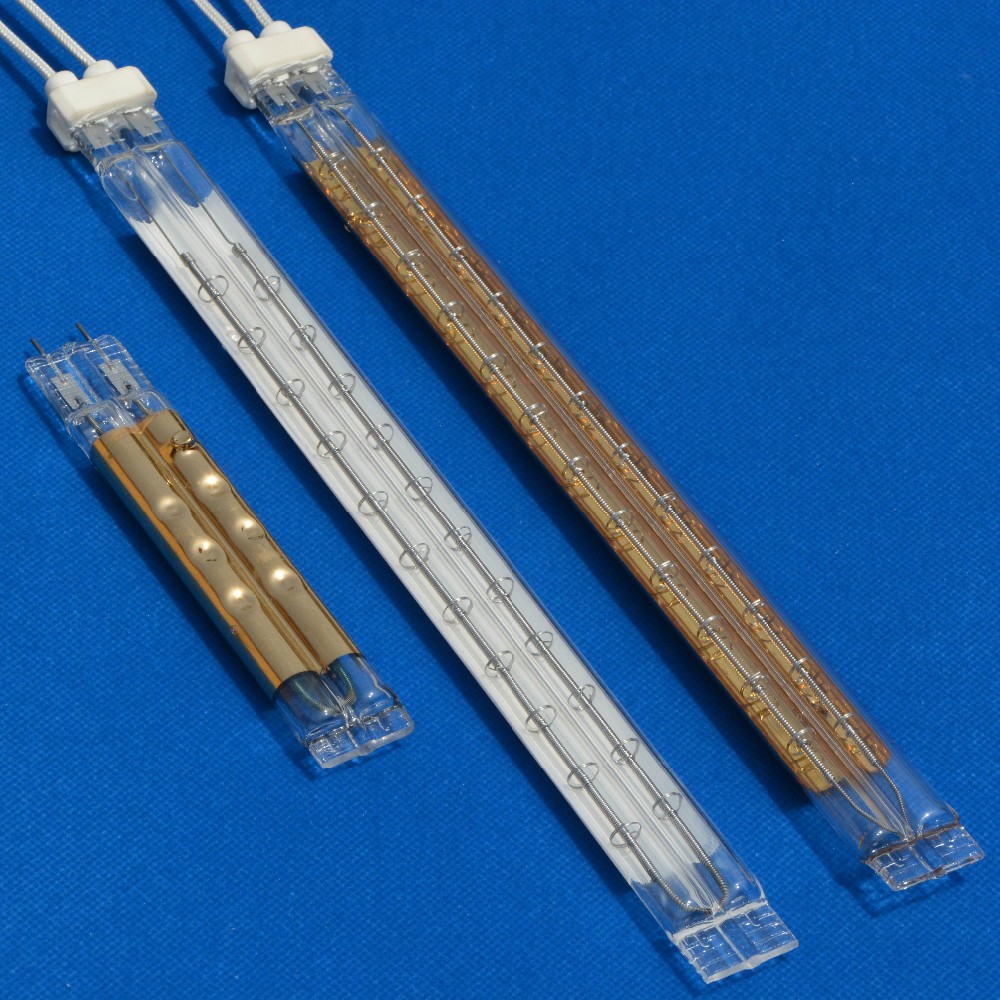

400V 4200W Twin Tube Infrared Heat Lamp


Quick heating: 1~2 seconds fast response time.

Special reflectors: Gold reflector (90% reflective rate), White ceramic reflector (70% reflective rate).

Matched IR radiation wavelength: Short wave (1.0~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).

Higher density power output: The highest surface power output of short wave lamp is 200KW/M2, Fast response medium wave lamp is 130KW/M2, Medium wave lamp is 60KW/M2.

Long working life: We can promise the working life of short wave and fast response medium wave lamp 5000hrs and medium wave lamp 8000hrs.


400V 4200W Heraeus Replacement Lamp Twin Tube Infrared Heat Lamp


Specifications:

400V 4200W Heraeus Replacement Lamp Twin Tube Infrared Heat Lamp

Alternative Models


Part no. Volts Watts OAL Type
0975172040030001100A
09751713115600145B
097517512301500300B
097517412301200405B
097517404003000600B
097513404003000600B
097517612303000650C
097517652304200850C
0975176040060001150C
0975173140070001450C
0975178040060001450D
0975178340050001850D
09752439230500400B
097551672301000900B
097550542302000900B
0975525523025001100B
0975318723032501420B
0975458523037501600B
0975486340041001800B
0975478340045001920B
0975608340057502400B
0975387423062502600B
0975392340025001300C
0975291240040001700B
0975461940050002120B
0975387440062502600B
0975147340048001150B
0975147140040001150B
0975147440095002250C
0975147240048002715A
0975147540096002750C


Heidelberg

Machine

Alt part no.

Voltage

Wattage

TOL

Type

Speedmaster 74

M6.170.0301/01

400

6950

900

L

Speedmaster 74

SM74-FMW-B

480

4200

900

B

Speedmaster 52

G4.170.0101

415

3300

740

B

M Offset/ MO

53.170.1311

415

3300

740

B

Speedmaster 102

91.170.1311

415

3500

1100

A

Speedmaster 102

C7.170.0301/01

400

5400

1200

H

Speedmaster 102

91.170.1411

415

2500

1100

B

Speedmaster 102

SM102-FMW-B

480

6000

1125

B

Speedmaster 102

F7.170.0771

400

6200

1160

G

Speedmaster 72

83.170.1311

415

3500

800

B

Speedmaster 72

83.170.1411

415

1900

800

B

XL105

F7.170.0771.01

400

6200

1160

G



We also have the ability to design and produce other kinds of infrared heating lamps according to your requests.



Donghai Young Light Optical Technology Co., Ltd is a professional manufacturer specialized in producing infrared heating lamps over 15 years. All of our infrared heating lamps can meet the testing standard of CE, RoHS. Custom made is available in our factory, same specification as HERAEUS, DR. FISCHER, GE, PHILIPS etc.

We also provide OEM/ODM service of different designs IR heating lamps, and ensure the good quality with on time delivery.  Our heating lamps are exported to more than 50 countries include Germany, UK, USA, Mexico, Brazil, Egypt, Turkey, South Korea and other Asian countries.  We manufacture singe tube IR heating lamps and twin tube IR heating lamps and sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation.

If you want to order or have any questions, please provide the following technical parameters or tell us your heating requests, we will reply you within 24 hours.

Total length LT=?
Heated length LH=?
Voltage=?
Wattage=?
Cross section= 23×11mm or 33×15mm
Reflector= Gold or White ceramic
Burning position= Horizontal or Vertical
Lamp type or original photo
