IR Heat Lamps for PET Blowing Machine > IR Heat Lamp for KRONES >

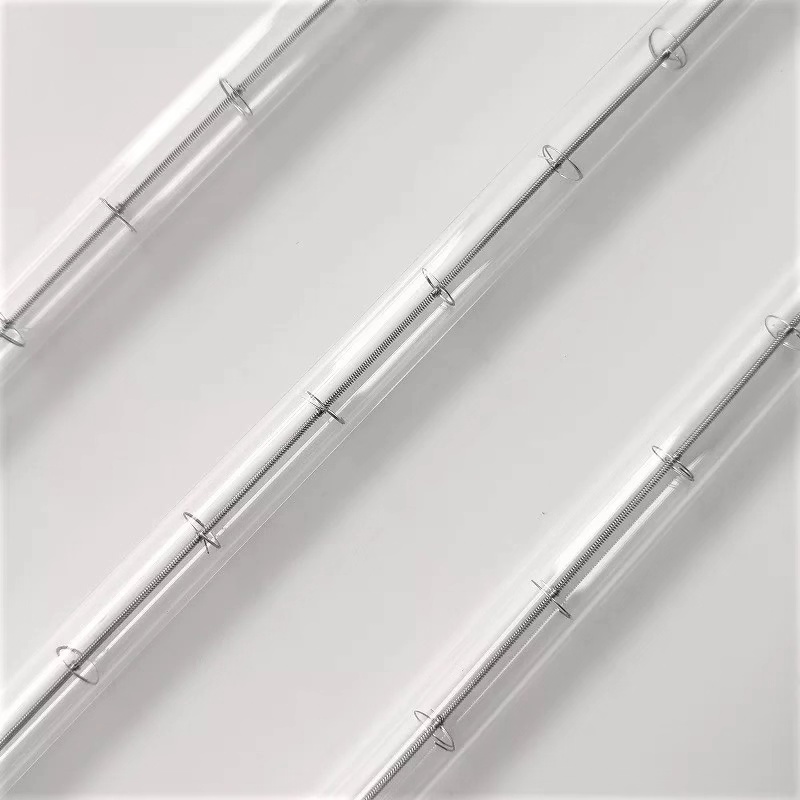

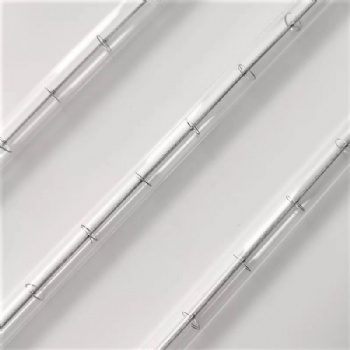

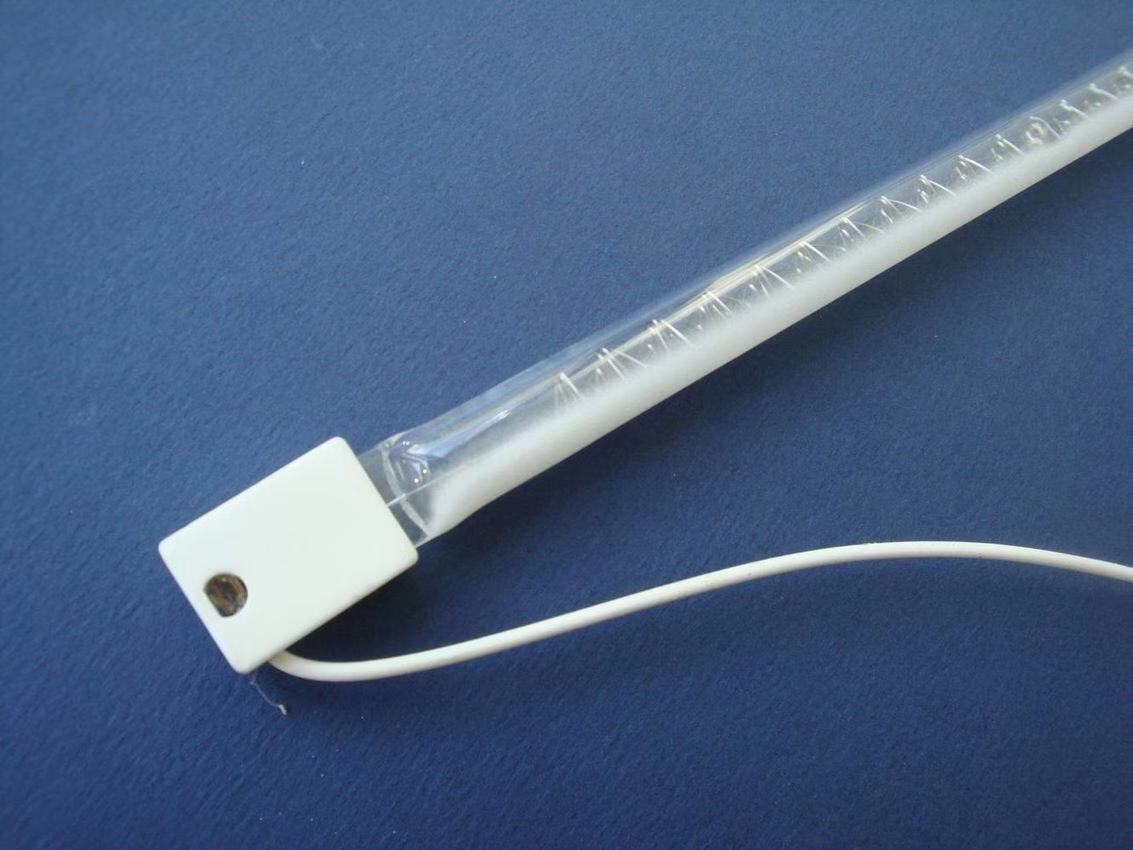

Quartz Infrared Heat Lamp For PET Blowing
- Voltage:110V to 480V
- Watt:500W to 3000W
- Length: 225mm to 1200mm
- Custom made is available, send us your specification
- INQUIRY
IR HEAT LAMPS FOR KRONES
3000W, 400V IR Heat lamp
Specifications :
Wattage : 3000
Voltage : 400
Overall length : 354mm
Lighted length : 285mm
Finish : coated lamp
Tube diameter : 10.5
Lead length : 230mm
End connection : SK15
Pip size: max. 5mm
Life : 5000 hours
Burning position : Horizontal
1600W, 144V IR Heat lamp
Specifications :
Wattage : 1600
Voltage : 144
Overall length : 222mm
Lighted length : 157mm
Finish : coated lamp
Tube diameter : 10.5
Lead length : 150mm
End connection : SK15
Pip size: max. 5mm
Life : 5000 hours
Burning position : Horizontal
2500W, 400V IR Heat lamp
Specifications :
Wattage : 2500
Voltage : 400
Overall length : 354mm
Lighted length : 285mm
Finish : coated lamp
Tube diameter : 10.5
Lead length : 230mm
End connection : SK15
Pip size: max. 5mm
Life : 5000 hours
Burning position : Horizontal
1200W, 144V IR Heat lamp
Specifications :
Wattage : 1200
Voltage : 144
Overall length : 222mm
Lighted length : 157mm
Finish : coated lamp
Tube diameter : 10.5
Lead length : 150mm
End connection : SK15
Pip size: max. 5mm
Life : 5000 hours
Burning position : Horizontal
